Depth Anything V2

Depth Anything V2 is a monocular depth estimation model. It returns a normalized depth map (values between 0 and 1) for any input image.

Depth Anything V2 API

1

Get your API Key

Create a Roboflow account, find your key on the Roboflow API settings page and make it available to your shell:

Copy

export ROBOFLOW_API_KEY="your-key-here"

2

Install the dependencies

Install the Inference SDK:

Copy

pip install -U inference-sdk opencv-python supervision

3

Run the model

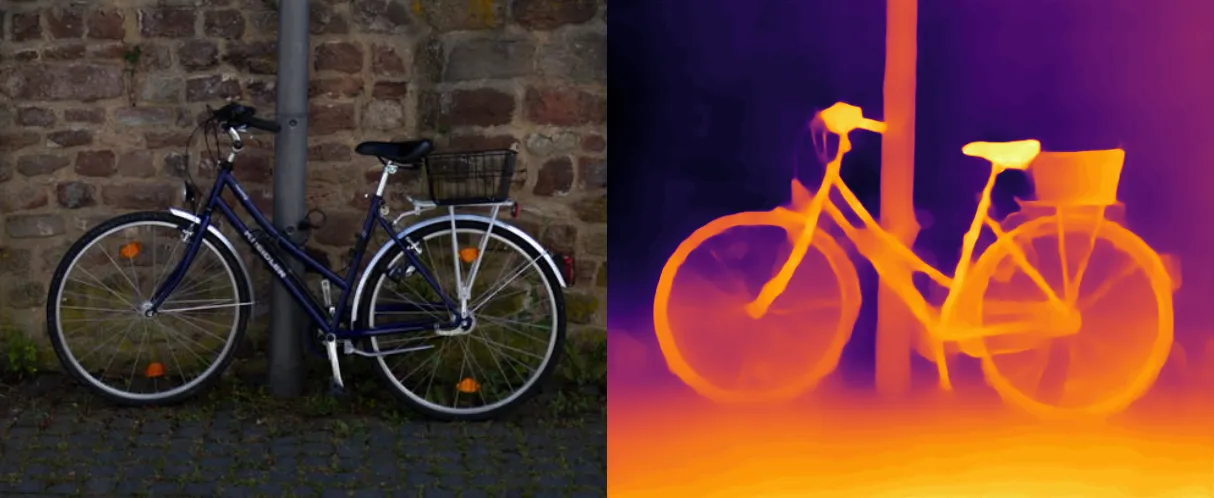

Set api_url to your Dedicated Deployment URL or a local Inference server. The script colorizes the depth map and writes a side-by-side comparison with the input.

Copy

import os
import cv2
import numpy as np
import supervision as sv
from inference_sdk import InferenceHTTPClient

image = sv.load_image_from_url("https://media.roboflow.com/notebooks/examples/bicycle.png")
client = InferenceHTTPClient(
    api_url="https://your-deployment.roboflow.cloud",
    api_key=os.environ["ROBOFLOW_API_KEY"],
)
result = client.depth_estimation(image)

depth = np.array(result["normalized_depth"], dtype=np.float32)
depth = cv2.resize(depth, (image.shape[1], image.shape[0]))
depth_vis = (depth * 255).astype(np.uint8)
depth_color = cv2.applyColorMap(depth_vis, cv2.COLORMAP_INFERNO)

cv2.imwrite("depth_annotated.png", np.hstack([image, depth_color]))

Depth Anything V2 inference speed

Latency measured with Roboflow Inference on 1x NVIDIA L4, batch size 1, mean after warmup.

Measured on the Small checkpoint.

Depth Anything V2 available models

The depth estimation endpoint and the depth_estimation@v1 Workflow block serve two model families behind one ordinal-depth contract: an image-sized map normalized per image, where 1.0 is nearest and 0.0 is farthest.

• Depth Anything (relative depth): depth-anything-v2/small, depth-anything-v3/small, depth-anything-v3/base
• YOLO26 depth (metric depth, normalized on this path, substantially faster): yolo26n-depth-768, yolo26s-depth-768, yolo26m-depth-768, yolo26l-depth-768, yolo26x-depth-768

The shared output preserves shape, range, and near-to-far ordering across models, but intermediate values are not geometrically equivalent between model families. Values are ordinal proximity scores, not physical distances, and must not be compared numerically across different images or model families. For absolute metric depth in meters from the YOLO26 checkpoints, load them directly with inference_models.AutoModel.

Depth Anything V2 response formats

The /infer/depth-estimation endpoint serializes normalized_depth according to the request's depth_map_format field:

• json (default): a nested list of floats between 0 and 1. Wire-compatible with older clients, but roughly 17 MB for a 1080x810 image.
• png16: a base64 16-bit grayscale PNG (quantization step 1/65535, typically more than 10x smaller and much faster to serve).
• png8: a base64 8-bit grayscale PNG (256 depth levels, roughly another order of magnitude smaller). Fine for visualization and thresholding, lossy for derivative-based geometric use.

The SDK's depth_estimation() method defaults to json, so existing integrations keep receiving the nested list. Pass depth_map_format="png16" (or "png8") to opt in to the compact payload: the SDK decodes it back into a numpy.ndarray (call .tolist() if you need JSON-serializable output).

Run Depth Anything V2 with self-hosted Inference

You can also load the model directly with the inference package.

pip install "inference[transformers]"

export HUGGING_FACE_HUB_TOKEN=your_token_here

from PIL import Image

from inference.models.depth_estimation.depthestimation import DepthEstimator

model = DepthEstimator()

image = Image.open("your_image.jpg")
results = model.predict(image)

depth_map = results[0]["normalized_depth"]
visualization = results[0]["image"]

Execution modes in Workflows

When used in a Workflow, depth estimation runs in one of two modes:

• Local execution: the model runs on your Inference server (GPU recommended).
• Remote execution: the model is invoked over HTTP on a remote Inference server through the depth_estimation() client method.
