Run Workflows on large batches of images and stored videos with cloud infrastructure provisioned for you.

About

Batch Processing is a cost-effective way to run Workflows on batches of images and stored videos. It's ideal for asynchronously processing large amounts of data.

Batch Processing automatically provisions the infrastructure needed to run a large batch.

Batch Processing is available on Growth and Enterprise plans. You can start a job from the "Batch Processing" tab, or run a Workflow on a selection in the Asset Library.

You can configure a Batch Processing job through the Roboflow web interface or through our API (via the CLI).

When you start a job, machines will be provisioned in the cloud to process your data. You will then receive a JSON file with the output from the Workflow you chose to run on your data.

The following video explains Batch Processing in depth:

Web App

Create a Batch Processing Job

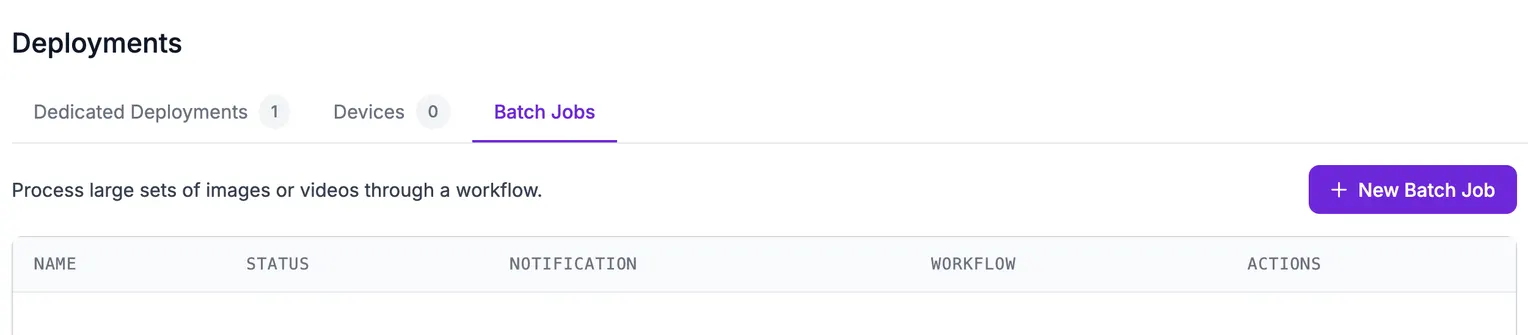

To create a Batch Processing job, click Deployments in the left sidebar of your Roboflow dashboard. Then, click on the "Batch Processing" tab:

Click "New Batch Job" to create a Batch Processing job.

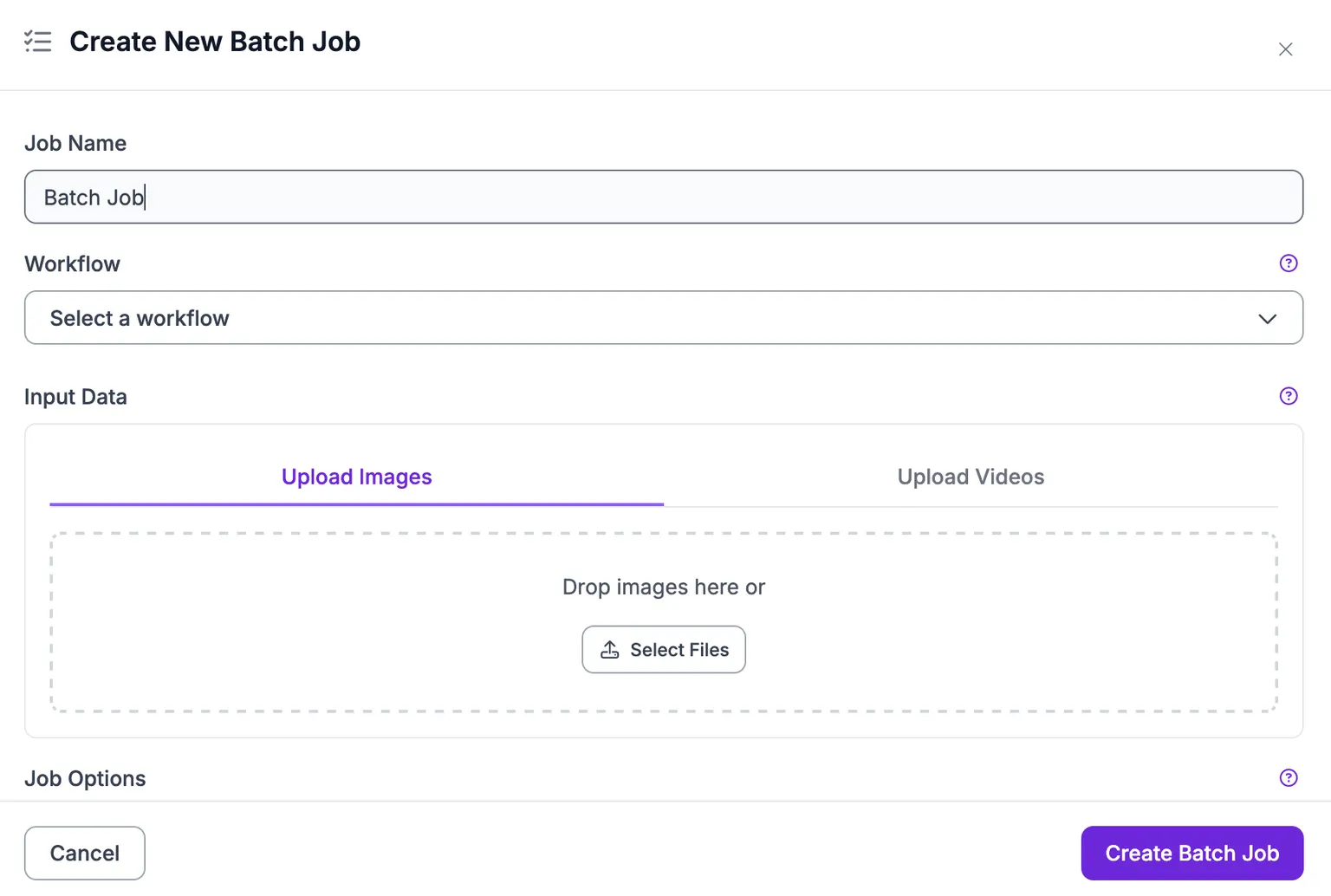

A window will open in which you can configure your job:

Choose a Workflow

To start configuring a job, first select a Workflow. If you do not already have a Workflow, refer to our Workflows documentation to get started.

Upload Images or Videos

Next, you need to upload the images or videos on which you want to run your Workflow.

Configure Hardware

You can run your Batch Processing job on a CPU or a GPU. GPU jobs are faster but more expensive.

For pricing information, refer to the Roboflow pricing documentation.

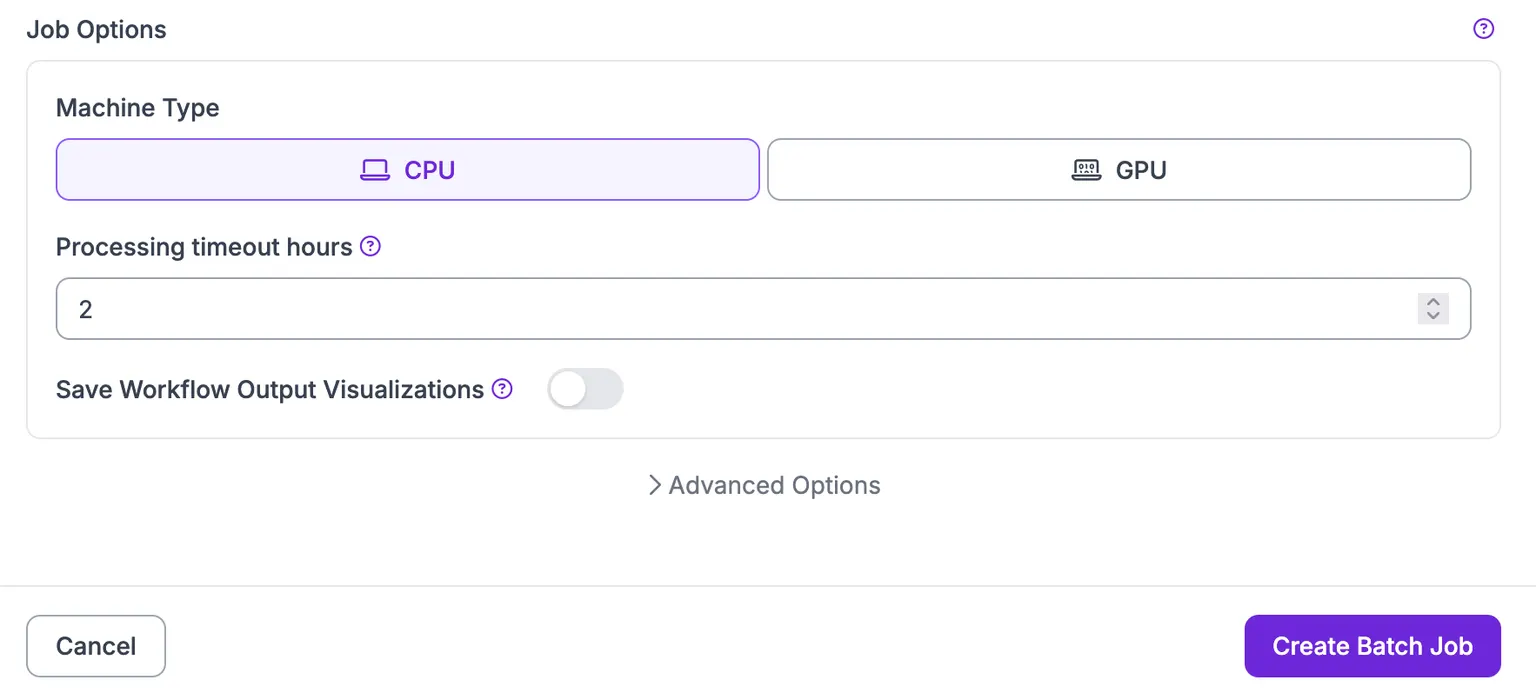

Select either a CPU or GPU for your job:

Several advanced configuration options are also available under the "Advanced Options" tab. We recommend leaving these options as the default.

Start the Job

To start the Batch Processing job, click "Create Batch Job".

The infrastructure for your job will be provisioned and processing will begin.

Monitor Job Progress

When you start your job, a status indicator will appear indicating when processing is being configured, when the batch data is being processed, and when the job is complete.

You can monitor how much of a batch has been processed in real time.

The amount of time it will take to process your data depends on how many images or videos you are processing, the complexity of your Workflow, and whether you selected CPU or GPU hardware.

Open a job to view its details, including the "Input Source" that shows which images the job ran on: the Asset Library search query used to select them (with a link to reopen that selection), or the number of images picked manually.

Run a Workflow from the App

Besides the API and CLI, you can start a Batch Processing job directly from the Roboflow app to run a Workflow over large sets of stored images. There are two ways to do this:

On demand, from the Asset Library.
Automatically, each time a Datasource mirrors new images from a cloud bucket.

From the Asset Library

The Asset Library lets you run a Workflow on the images you select, on demand.

Select images manually, or select all images matching your current search, then click "Run Workflow". For the full flow, including how to write results back onto your images, see Running a Workflow.

Automatically When a Datasource Mirrors

A Datasource mirrors images and metadata from a cloud bucket into your Workspace. You can automatically run a Workflow over the new images each mirror imports. This keeps enrichment such as tagging, quality scoring, or pre-labeling up to date as new data arrives, with no manual step.

You configure these automations in the "Workflow runs" section of your Datasources page.

Managing Workflow runs requires a Workspace role with permission to manage batch automations. If you do not see the "Workflow runs" section, ask a Workspace admin.

To add an automation:

In the "Workflow runs" section, click "Add workflow run".
Enter a Name for the automation.
Under "Run when", choose "On Sync" and select the Datasources that should trigger it.
Select the Workflow to run. It must have exactly one image input.
Choose a Machine type (CPU or GPU).
Click "Create".

Each time one of the selected Datasources mirrors, the automation runs the Workflow as a Batch Processing job over the images that mirror imported. Track progress in the Activity Center and on the "Batch Processing" tab under Deployments, the same as any other Batch Processing job.

To have a Workflow write its results back onto your images so you can search for them in the Asset Library, see Writing results back to the Asset Library.

Run a Job with the API or CLI

To create and run a Batch Processing job programmatically, see the HTTP API and CLI sections below. For debugging common issues, see Troubleshooting.

HTTP API

Quick Links:

Ingest Data (video, single image, images)
Check Batch Status (item count, shard details)
Start a Job
Monitor Job Progress (job status, stages, tasks)
Export Results (output parts, download URLs)
Webhook Notifications

Ingest Data

Upload Video

Upload a video

posthttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video

Request a signed URL to upload a video file. After receiving the response, PUT the video to the uploadURL with the provided extensionHeaders.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

fileNamestringRequired

Name of the video file (e.g. my_video.mp4).

Responses

200Signed URL details for uploading the video.application/json

statusstringOptional

Example: ok

signedURLDetailsobjectOptional

Show properties

uploadURLstringOptional

PUT the video file to this URL.

methodstringOptional

HTTP method to use for the upload.

Example: PUT

extensionHeadersobjectOptional

Include these headers in the PUT request.

Example: {"Content-Type":"application/octet-stream","x-goog-content-length-range":"1,1073741824"}

maxFileSizeintegerOptional

Maximum file size in bytes.

Example: 1073741824

post/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video

POST /data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video?api_key=text&fileName=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

curl -L \
  --request POST \
  --url 'https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video?api_key=text&fileName=text' \
  --header 'Accept: application/json'

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video?api_key=text&fileName=text", {
  method: "POST",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/video?api_key=text&fileName=text"
headers = {
    "Accept": "application/json"
}

response = requests.post(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "signedURLDetails": {
    "uploadURL": "text",
    "method": "PUT",
    "extensionHeaders": {
      "Content-Type": "application/octet-stream",
      "x-goog-content-length-range": "1,1073741824"
    },
    "maxFileSize": 1073741824
  }
}

Upload Image

Upload a single image

posthttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image

Upload a single image via multipart form data. Best for batches up to 5,000 images.

Note: Single-image and bulk uploads cannot be combined for the same batch.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

fileNamestringRequired

Name of the image file.

Bodymultipart/form-data

filestringOptional

The image file to upload.

Responses

200Image uploaded successfully.application/json

statusstringOptional

Example: ok

post/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image

POST /data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image?api_key=text&fileName=text HTTP/1.1
Host: api.roboflow.com
Content-Type: multipart/form-data
Accept: application/json

{
  "file": "binary"
}

curl -L \
  --request POST \
  --url 'https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image?api_key=text&fileName=text' \
  --header 'Content-Type: multipart/form-data' \
  --header 'Accept: application/json' \
  --data '{
  "file": "binary"
}'

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image?api_key=text&fileName=text", {
  method: "POST",
  headers: {
    "Content-Type": "multipart/form-data",
    "Accept": "application/json"
  },
  body: JSON.stringify({
    "file": "binary"
  })
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/upload/image?api_key=text&fileName=text"
headers = {
    "Content-Type": "multipart/form-data",
    "Accept": "application/json"
}
payload = {
  "file": "binary"
}

response = requests.post(url, headers=headers, json=payload)
print(response.json())

Response

{
  "status": "ok"
}

Bulk Upload Images

Bulk upload images

posthttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files

Request a signed URL for uploading a .tar archive of images. Recommended for batches exceeding 5,000 images. Bundle up to 500 images per archive.

The response contains a signed URL and extension headers. Pack images into a .tar archive and PUT it to the signed URL.

Note: Bulk and single-image uploads cannot be combined for the same batch.

When performing bulk ingestion, data is indexed in the background. There may be a short delay before all data is available.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Responses

200Signed URL details for uploading a tar archive.application/json

statusstringOptional

Example: ok

signedURLDetailsobjectOptional

Show properties

shardIdstringOptional

Unique identifier for this shard upload.

uploadURLstringOptional

PUT the tar archive to this URL.

methodstringOptional

HTTP method to use for the upload.

Example: PUT

extensionHeadersobjectOptional

Include these headers in the PUT request.

Example: {"Content-Type":"application/x-tar","x-goog-content-length-range":"1,536870912"}

maxNumberOfImagesintegerOptional

Maximum number of images per tar archive.

Example: 500

maxShardSizeintegerOptional

Maximum tar archive size in bytes.

Example: 536870912

post/data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files

POST /data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

curl -L \
  --request POST \
  --url 'https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files?api_key=text' \
  --header 'Accept: application/json'

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files?api_key=text", {
  method: "POST",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/bulk-upload/image-files?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.post(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "signedURLDetails": {
    "shardId": "text",
    "uploadURL": "text",
    "method": "PUT",
    "extensionHeaders": {
      "Content-Type": "application/x-tar",
      "x-goog-content-length-range": "1,536870912"
    },
    "maxNumberOfImages": 500,
    "maxShardSize": 536870912
  }
}

Check Batch Status

Get batch item count

gethttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/count

Returns the count of ingested items in a batch. Use this to verify all data has been ingested before starting a job.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Responses

200Batch item count.application/json

statusstringOptional

Example: ok

countintegerOptional

Number of items in the batch.

Example: 42

get/data-staging/v1/external/{workspace}/batches/{batch_id}/count

GET /data-staging/v1/external/{workspace}/batches/{batch_id}/count?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/count?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/count?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "count": 42
}

Check Shard Upload Details

List batch shards

gethttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/shards

Returns shard details for a bulk-upload batch. Paginated — use nextPageToken from the response to fetch subsequent pages.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

nextPageTokenstringOptional

Pagination token from a previous response.

Responses

200Paginated list of batch shards.application/json

statusstringOptional

Example: ok

shardsobject[]Optional

List of shard objects.

nextPageTokenstring · nullableOptional

Token for fetching the next page of results. null if no more pages.

get/data-staging/v1/external/{workspace}/batches/{batch_id}/shards

GET /data-staging/v1/external/{workspace}/batches/{batch_id}/shards?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/shards?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/shards?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "shards": [
    {}
  ],
  "nextPageToken": "text"
}

Start a Job

Start a batch processing job

posthttps://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}

Start a batch processing job that runs a Workflow against staged data.

Job ID constraints: Lowercase letters, digits, hyphens, and underscores only. Maximum 20 characters.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

job_idstringRequired

Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Bodyapplication/json

typestring · enumRequired

Job type.

Possible values:simple-image-processing-v1

jobInputobjectRequired

Show properties

typestring · enumRequired

Input type.

Possible values:staging-batch-input-v1

batchIdstringRequired

The batch ID containing the data to process.

computeConfigurationobjectRequired

Show properties

typestring · enumRequired

Configuration type.

Possible values:compute-configuration-v2

machineTypestring · enumRequired

Machine type. Use gpu for Workflows with multiple or large models.

Possible values:cpugpu

workersPerMachineintegerOptional

Number of parallel workers per machine. Reduce for memory-intensive Workflows.

Default: 4

processingTimeoutSecondsintegerOptional

Maximum cumulative machine runtime in seconds across all parallel workers.

Default: 3600

processingSpecificationobjectRequired

Show properties

typestring · enumRequired

Processing specification type.

Possible values:workflows-processing-specification-v1

workspacestringRequired

Workspace containing the Workflow.

workflowIdstringRequired

The Workflow to run. Find this in the Workflow Editor under "Deploy".

aggregationFormatstring · enumOptional

Output format for aggregated results.

Default: jsonl

Possible values:jsonlcsv

notificationsURLstringOptional

Webhook URL for job completion notifications. Custom webhook headers are not yet supported. The only header sent is Authorization: Bearer rf_{workspace_id}.

Responses

200Job started successfully.application/json

statusstringOptional

Example: ok

post/batch-processing/v1/external/{workspace}/jobs/{job_id}

POST /batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text HTTP/1.1
Host: api.roboflow.com
Content-Type: application/json
Accept: application/json

{
  "type": "simple-image-processing-v1",
  "jobInput": {
    "type": "staging-batch-input-v1",
    "batchId": "text"
  },
  "computeConfiguration": {
    "type": "compute-configuration-v2",
    "machineType": "cpu",
    "workersPerMachine": 4
  },
  "processingTimeoutSeconds": 3600,
  "processingSpecification": {
    "type": "workflows-processing-specification-v1",
    "workspace": "text",
    "workflowId": "text",
    "aggregationFormat": "jsonl"
  },
  "notificationsURL": "text"
}

curl -L \
  --request POST \
  --url 'https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text' \
  --header 'Content-Type: application/json' \
  --header 'Accept: application/json' \
  --data '{
  "type": "simple-image-processing-v1",
  "jobInput": {
    "type": "staging-batch-input-v1",
    "batchId": "text"
  },
  "computeConfiguration": {
    "type": "compute-configuration-v2",
    "machineType": "cpu",
    "workersPerMachine": 4
  },
  "processingTimeoutSeconds": 3600,
  "processingSpecification": {
    "type": "workflows-processing-specification-v1",
    "workspace": "text",
    "workflowId": "text",
    "aggregationFormat": "jsonl"
  },
  "notificationsURL": "text"
}'

const response = await fetch("https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text", {
  method: "POST",
  headers: {
    "Content-Type": "application/json",
    "Accept": "application/json"
  },
  body: JSON.stringify({
    "type": "simple-image-processing-v1",
    "jobInput": {
      "type": "staging-batch-input-v1",
      "batchId": "text"
    },
    "computeConfiguration": {
      "type": "compute-configuration-v2",
      "machineType": "cpu",
      "workersPerMachine": 4
    },
    "processingTimeoutSeconds": 3600,
    "processingSpecification": {
      "type": "workflows-processing-specification-v1",
      "workspace": "text",
      "workflowId": "text",
      "aggregationFormat": "jsonl"
    },
    "notificationsURL": "text"
  })
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text"
headers = {
    "Content-Type": "application/json",
    "Accept": "application/json"
}
payload = {
  "type": "simple-image-processing-v1",
  "jobInput": {
    "type": "staging-batch-input-v1",
    "batchId": "text"
  },
  "computeConfiguration": {
    "type": "compute-configuration-v2",
    "machineType": "cpu",
    "workersPerMachine": 4
  },
  "processingTimeoutSeconds": 3600,
  "processingSpecification": {
    "type": "workflows-processing-specification-v1",
    "workspace": "text",
    "workflowId": "text",
    "aggregationFormat": "jsonl"
  },
  "notificationsURL": "text"
}

response = requests.post(url, headers=headers, json=payload)
print(response.json())

Response

{
  "status": "ok"
}

Monitor Job Progress

Get Job Status

Get job status

gethttps://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}

Returns the current status of a batch processing job.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

job_idstringRequired

Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Responses

200Job status details.application/json

statusstringOptional

Example: ok

jobStatusstringOptional

Current job status (e.g. pending, processing, completed, failed).

progressnumberOptional

Processing progress as a fraction between 0 and 1.

get/batch-processing/v1/external/{workspace}/jobs/{job_id}

GET /batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "jobStatus": "text",
  "progress": 1
}

List Job Stages

List job stages

gethttps://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages

Returns the list of stages for a job. Each job typically has processing and export stages, each producing an output batch.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

job_idstringRequired

Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Responses

200List of job stages.application/json

statusstringOptional

Example: ok

stagesobject[]Optional

List of stage objects. Each stage has an ID and an output batch ID.

get/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages

GET /batch-processing/v1/external/{workspace}/jobs/{job_id}/stages?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "stages": [
    {}
  ]
}

List Stage Tasks

List tasks for a stage

gethttps://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks

Returns the list of tasks for a specific job stage. Paginated — use nextPageToken from the response to fetch subsequent pages.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

job_idstringRequired

Job identifier. Lowercase, max 20 chars: letters, digits, hyphens, underscores.

stage_idstringRequired

The stage identifier.

Query parameters

api_keystringRequired

Your Roboflow API key.

nextPageTokenstringOptional

Pagination token from a previous response.

Responses

200Paginated list of tasks.application/json

statusstringOptional

Example: ok

tasksobject[]Optional

List of task objects.

nextPageTokenstring · nullableOptional

Token for fetching the next page of results. null if no more pages.

get/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks

GET /batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/batch-processing/v1/external/{workspace}/jobs/{job_id}/stages/{stage_id}/tasks?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "tasks": [
    {}
  ],
  "nextPageToken": "text"
}

Export Results

List Output Parts

List output batch parts

gethttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/parts

Lists the parts of an output batch. Use the export stage output batch for compressed results.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

Responses

200List of batch parts.application/json

statusstringOptional

Example: ok

partsobject[]Optional

List of batch part objects.

Show properties

partNamestringOptional

Name of the batch part.

get/data-staging/v1/external/{workspace}/batches/{batch_id}/parts

GET /data-staging/v1/external/{workspace}/batches/{batch_id}/parts?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/parts?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/parts?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "parts": [
    {
      "partName": "text"
    }
  ]
}

List Download URLs

List download URLs

gethttps://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/list

Returns paginated download URLs for files in a batch part.

Path parameters

workspacestringRequired

Your Roboflow workspace identifier.

batch_idstringRequired

Batch identifier. Lowercase, max 64 chars: letters, digits, hyphens, underscores.

Query parameters

api_keystringRequired

Your Roboflow API key.

nextPageTokenstringOptional

Pagination token from a previous response.

partNamestringOptional

Filter by part name (from the list parts response).

Responses

200Paginated list of download URLs.application/json

statusstringOptional

Example: ok

filesMetadataobject[]Optional

List of file metadata objects with download URLs.

Show properties

downloadURLstringOptional

Signed URL to download the file.

fileNamestringOptional

Original file name.

partNamestring · nullableOptional

Part name this file belongs to.

shardIdstring · nullableOptional

Shard ID (for bulk-upload batches).

contentTypestringOptional

Content type (e.g. image, video).

nestedContentTypestring · nullableOptional

Nested content type, if applicable.

nextPageTokenstring · nullableOptional

Token for fetching the next page of results. null if no more pages.

get/data-staging/v1/external/{workspace}/batches/{batch_id}/list

GET /data-staging/v1/external/{workspace}/batches/{batch_id}/list?api_key=text HTTP/1.1
Host: api.roboflow.com
Accept: application/json

const response = await fetch("https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/list?api_key=text", {
  method: "GET",
  headers: {
    "Accept": "application/json"
  }
});

const data = await response.json();
console.log(data);

import requests

url = "https://api.roboflow.com/data-staging/v1/external/{workspace}/batches/{batch_id}/list?api_key=text"
headers = {
    "Accept": "application/json"
}

response = requests.get(url, headers=headers)
print(response.json())

Response

{
  "status": "ok",
  "filesMetadata": [
    {
      "downloadURL": "text",
      "fileName": "text",
      "partName": "text",
      "shardId": "text",
      "contentType": "text",
      "nestedContentType": "text"
    }
  ],
  "nextPageToken": "text"
}

Webhook Notifications

Instead of polling for status, you can use webhooks to get notified when ingestion or processing completes. See CLI Usage for webhook configuration and payload formats.

CLI

By installing inference-cli you gain access to the inference rf-cloud command, which allows you to interact with Batch Processing and Data Staging - the core components of Roboflow Batch Processing.

Setup

pip install inference-cli
export ROBOFLOW_API_KEY="YOUR-API-KEY-GOES-HERE"

For cloud storage support:

pip install 'inference-cli[cloud-storage]'

If you need help finding your API key, see our authentication guide.

Ingest Data

Images

inference rf-cloud data-staging create-batch-of-images \
  --images-dir <your-images-dir-path> \
  --batch-id <your-batch-id>

Videos

inference rf-cloud data-staging create-batch-of-videos \
  --videos-dir <your-videos-dir-path> \
  --batch-id <your-batch-id>

Batch ID format: Must be lowercase, at most 64 characters, with only letters, digits, hyphens (-), and underscores (_).

Cloud Storage

If your data is already in cloud storage (S3, Google Cloud Storage, or Azure), you can process it directly without downloading files locally.

For images:

inference rf-cloud data-staging create-batch-of-images \
  --data-source cloud-storage \
  --bucket-path <cloud-path> \
  --batch-id <your-batch-id>

For videos:

inference rf-cloud data-staging create-batch-of-videos \
  --data-source cloud-storage \
  --bucket-path <cloud-path> \
  --batch-id <your-batch-id>

The --bucket-path parameter supports the following providers. Glob patterns filter which files are ingested:

Provider	Path format	Glob example
S3	`s3://bucket-name/path/`	`s3://my-bucket/training-data/*/.jpg` - all JPGs recursively
Google Cloud Storage	`gs://bucket-name/path/`	`gs://my-bucket/videos/2024-/.mp4` - MP4s in `2024-*` folders
Azure Blob Storage	`az://container-name/path/`	`az://container/images/*.png` - PNGs in the images folder

Your cloud storage credentials are used only locally by the CLI to generate presigned URLs. They are never uploaded to Roboflow servers.

Generated presigned URLs are valid for 24 hours. Ensure your batch processing job completes within this timeframe.

For large datasets, the system automatically splits images into chunks of 20,000 files each. Videos work best in batches under 1,000.

Signed URL Ingestion

For advanced automation, you can ingest data via signed URLs instead of local files:

Flag	Description
`--data-source references-file`	Process files referenced via signed URLs.
`--references <path_or_url>`	Path to a JSONL file containing file URLs, or a signed URL pointing to such a file.

Reference File Format (JSONL):

{"name": "<unique-file-name-1>", "url": "https://<signed-url>"}
{"name": "<unique-file-name-2>", "url": "https://<signed-url>"}

Signed URL ingestion is available to Growth Plan and Enterprise customers.

Inspect Staged Data

inference rf-cloud data-staging show-batch-details --batch-id <your-batch-id>

Start a Job

Process Images

inference rf-cloud batch-processing process-images-with-workflow \
  --workflow-id <workflow-id> \
  --batch-id <batch-id> \
  --machine-type gpu

Process Videos

inference rf-cloud batch-processing process-videos-with-workflow \
  --workflow-id <workflow-id> \
  --batch-id <batch-id> \
  --machine-type gpu \
  --max-video-fps <your-desired-fps>

Finding your Workflow ID: Open the Workflow Editor in the Roboflow App, click "Deploy", and find the identifier in the code snippet.

By default, processing runs on CPU. Use --machine-type gpu for Workflows with multiple or large models.

Monitor Job Progress

The start command outputs a Job ID. Use it to check status:

inference rf-cloud batch-processing show-job-details --job-id <your-job-id>

Export Results

The job details will include the output batch ID. Use it to export results:

inference rf-cloud data-staging export-batch \
  --target-dir <dir-to-export-result> \
  --batch-id <output-batch-of-a-job>

Webhook Automation

Instead of polling for status, you can use webhooks to get notified when ingestion or processing completes.

Data Ingestion Webhooks

The CLI commands create-batch-of-images and create-batch-of-videos support:

Flag	Description
`--notifications-url <webhook_url>`	Webhook endpoint for notifications.
`--notification-category ingest-status`	Overall ingestion process status. Default.
`--notification-category files-status`	Individual file processing status.

Notifications are delivered via HTTP POST with an Authorization header containing your Roboflow Publishable Key.

Ingest Status Notification

{
    "type": "roboflow-data-staging-notification-v1",
    "event_id": "8c20f970-fe10-41e1-9ef2-e057c63c07ff",
    "ingest_id": "8cd48813430f2be70b492db67e07cc86",
    "batch_id": "test-batch-117",
    "shard_id": null,
    "notification": {
        "type": "ingest-status-notification-v1",
        "success": false,
        "error_details": {
            "type": "unsafe-url-detected",
            "reason": "Untrusted domain found: https://example.com/image.png"
        }
    },
    "delivery_attempt": 1
}

File Status Notification

{
    "type": "roboflow-data-staging-notification-v1",
    "event_id": "8f42708b-aeb7-4b73-9d83-cf18518b6d81",
    "ingest_id": "d5cb69aa-b2d1-4202-a1c1-0231f180bda9",
    "batch_id": "prod-batch-1",
    "shard_id": "0d40fa12-349e-439f-83f8-42b9b7987b33",
    "notification": {
        "type": "ingest-files-status-notification-v1",
        "success": true,
        "ingested_files": [
            "000000494869.jpg",
            "000000186042.jpg"
        ],
        "failed_files": [
            {
                "type": "file-size-limit-exceeded",
                "file_name": "big_image.png",
                "reason": "Max size of single image is 20971520B."
            }
        ],
        "content_truncated": false
    },
    "delivery_attempt": 1
}

Job Completion Webhooks

Add --notifications-url when starting a job:

inference rf-cloud batch-processing process-images-with-workflow \
  --workflow-id <workflow-id> \
  --batch-id <batch-id> \
  --notifications-url <webhook_url>

Job Completion Notification

{
  "type": "roboflow-batch-job-notification-v1",
  "event_id": "8f42708b-aeb7-4b73-9d83-cf18518b6d81",
  "job_id": "<your-batch-job-id>",
  "job_state": "success | fail",
  "delivery_attempt": 1
}

Cloud Storage Authentication

AWS S3 and S3-Compatible Storage

Credentials are detected automatically from:

Environment variables:

export AWS_ACCESS_KEY_ID=your-access-key-id
export AWS_SECRET_ACCESS_KEY=your-secret-access-key
export AWS_SESSION_TOKEN=your-session-token  # Optional

AWS credential files (~/.aws/credentials, ~/.aws/config)
IAM roles (EC2, ECS, Lambda)

Named profiles:

export AWS_PROFILE=production

S3-compatible services (Cloudflare R2, MinIO, etc.):

export AWS_ENDPOINT_URL=https://account-id.r2.cloudflarestorage.com
export AWS_REGION=auto  # R2 requires region='auto'
export AWS_ACCESS_KEY_ID=your-r2-access-key
export AWS_SECRET_ACCESS_KEY=your-r2-secret-key

Google Cloud Storage

Credentials are detected from:

Service account key file (recommended for automation):

export GOOGLE_APPLICATION_CREDENTIALS=/path/to/service-account-key.json

User credentials from gcloud CLI (gcloud auth login)
GCP metadata service (when running on Google Cloud Platform)

Azure Blob Storage

SAS Token (recommended):

export AZURE_STORAGE_ACCOUNT_NAME=mystorageaccount
export AZURE_STORAGE_SAS_TOKEN="sv=2021-06-08&ss=b&srt=sco&sp=rl&se=2024-12-31"

Account Key:

export AZURE_STORAGE_ACCOUNT_NAME=mystorageaccount
export AZURE_STORAGE_ACCOUNT_KEY=your-account-key

Generate a SAS token via Azure CLI:

az storage container generate-sas \
  --account-name mystorageaccount \
  --name my-container \
  --permissions rl \
  --expiry 2024-12-31T23:59:59Z

Custom Scripts

For advanced use cases, reference scripts for generating signed URL files:

AWS S3: generateS3SignedUrls.sh
Google Cloud Storage: generateGCSSignedUrls.sh
Azure Blob Storage: generateAzureSasUrls.sh

Discover All Options

inference rf-cloud --help
inference rf-cloud data-staging --help
inference rf-cloud batch-processing --help
